PCC Truck Equipment Usage by City


Q-Car Logo

For Clark B2 and B3 Trucks

Drum Brakes
Electric Actuators
City Series Wheel Type Truck Type Tread Brakes Air West GE
Baltimore 7001-7425 S Res 3 B2 Yes Yes No No
7426-7428 Res B2 No Yes No No
Birmingham All Res B2 No No Yes No
Boston 3001 Res* B2 Yes Yes No No
3002-3021 S Res B2 Yes Yes No No
3022-3071 Res B2 Yes Yes No No
3072-3096 Res B2 No Yes No No
3097-3146 Res B2 Yes Yes No No
3147-3171 Res B2 No Yes No No
3172-3196 S Res B2 No Yes No No
3197-3221 S Res B2 No No Yes No
3222-3321 S Res 3 B2 No Yes No No
3322-3346 Res B2 No Yes No No
Brooklyn All Res B2 Yes Yes No No
Chicago 4002-4051 Res B2 Yes Yes No No
4052-4061 S Res B3 No No No Yes
4062-4371 S Res B2 No No No Yes
4372-4411 S Res B3 No No Yes No
7002-7034 Res B2 Yes Yes No No
7035-7114 S Res B3 No No No Yes
7115-7274 S Res B3 No No Yes No
Cincinnati 1000 Res B2 Yes Yes No No
1100-1126 S Res 3 B2 Yes Yes No No
1150-1174 S Res B2 No No No Yes
1200 Res B2 Yes No No No
Cleveland All S Res B2 No No Yes No
Dallas All Res B2 No Yes No No
Detroit 100-101 Res B2 No Yes No No
102-180 Res B3 No No No Yes
181-286 Res B2 No No No Yes
El Paso All Res B2 Yes Yes No No
Illinois Terminal All S Res B3 No No Yes No
Johnston All Res B3 No No Yes No
Kansas City 501-585 S Res B2 No No No Yes
701-724 S Res B2 Yes Yes No No
725-799 S Res B2 No No No Yes
Los Angeles 3001-3125 Res B2** Yes Yes No No
3126-3165 B Res B2** No No Yes No
Louisville All S Res B2 No No Yes No
Minneapolis 300-439 S Res B2 No No No Yes
1547 Res B2 Yes Yes No No
Montreal All Res B2 Yes Yes No No
Newark All S Res B2B No No No Yes
Pacific Electric All S Res B2 Yes Yes No No
Philadelphia 2001-2020 Res B2 Yes Yes No No
2031-2090 S Res B2 Yes yes No No
2091-2200 S Res 3 B2 No No Yes No
2201-2240 S Res B2 No No No Yes
2241 S Res B2 No No Yes No
2242-2250 S Res B2 No No No Yes
2251-2290 S Res B2 No No No Yes
2300-2318 S Res B2 No No Yes No
2501-2680 S Res 3 B2 Yes Yes No No
2701-2800 S Res B2 No No No Yes
Pittsburgh 100 Res B2 Yes Yes No No
1000-1564 Res B2 Yes Yes No No
1600 S Res 3 B2 No No Yes No
1601-1699 Res B2 No Yes No No
1700-1724 Res B3 No No Yes No
1725-1799 Res B2B No No Yes No
St. Louis All S Res 3 B2 No No No Yes
San Diego All Res B2 Yes Yes No No
San Francisco 1001-1002 S Res B2 Yes Yes No No
1004 S Res B2 Yes Yes No No
1006-1040 S Res B3 No No Yes No
1101-1189 S Res B2 No No No Yes
Shaker Heights 3 S Res B2 No No No Yes
40-49 S Res B2 No No No Yes
51-59 S Res B2 No No No Yes
127 S Res B2 No No No Yes
450-451 S Res B3 No No Yes No
4630-4665 S Res B2 No No Yes No
Toronto 4000-4199 Res B2 Yes Yes No No
4200-4259 S Res B2 Yes Yes No No
4260-4299 Res B2 Yes Yes No No
4300-4499 Res B2 No No Yes No
4500-4549 Res B2B No No Yes No
4550-4574 S Res B2 No No Yes No
4575-4601 Res B2 Yes Yes No No
4625-4699 S Res B2 No No Yes No
4700-4747 Res B2 No No Yes No
4750-4799 S Res B2 No No No Yes
Vancouver All Res B2 Yes Yes No No
Washington 1101-1122 Res B2 Yes Yes No No
1123-1145 Res B2 No No No Yes
1146-1175 Res B2 No No Yes No
1176-1195 Res B2 No No No Yes
1196-1213 S Res B2 No No No Yes
1214-1233 S Res B2 No No Yes No
1234-1250 Res & S Res B2 No No No Yes
1251-1267 Res B2 No No Yes No
1268-1284 Res B2 No No No Yes
1285-1301 S Res B2 No No Yes No
1302-1317 S Res B2 No No No Yes
1318-1332 S Res B2 No No Yes No
1333-1366 Res B2 No No No Yes
1367-1399 Res B2 NO No Yes No
1400-1431 Res B2 No No No Yes
1432-1464 Res B2 No No Yes No
1465-1501 Res B2 No No Yes No
1502-1539 Res B2 No No No Yes
1540-1564 Res B2 No No No Yes
1565-1589 Res B2 No No Yes No

Res = Resilient, Form I
S Res 2 = Super Resilient, Form II
S Res 3 = Super Resilient, Form III

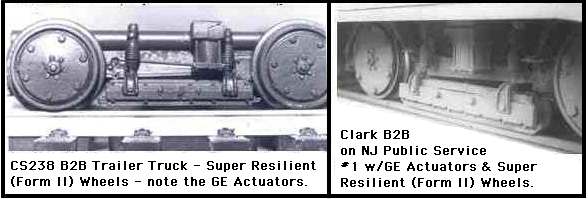

Notes: As the above chart shows when tread brakes were used drum brakes were not. When the Air operated drum brakes were used no external brake actuator or brake could be seen. The entire brake system was internal to the truck. (A small air cylinder operated a drum brake at the drive shaft end of the axle gear housing - two per truck.) When the GE Electric Actuator was used a vertical cylinder was attached to the outside of the truck main tube frame. This device (an electric solenoid) operated a spring loaded drum brake attached to the motor drive shaft. The cylinder's top and bottom was held together with four external bolts. When the Westinghouse Electric Actuator was used an "automotive starter motor w/solenoid" looking device (actually one large solenoid) was attached to the outside of the truck tube frame. Like the GE Actuator this device operated a spring loaded drive shaft drum brake. Two brake actuators were required for each truck on GE or Westinghouse trucks. (We can supply the GE Actuator; we cannot supply the Westinghouse Actuator.)

*Eventually Boston eliminated rubber wheel inserts and utilized plain steel wheels. See Boston Wheel Covers.

**Because Los Angeles operated on narrow gage track the ERPCC had to develop another truck. This eventually became known as the Bl. Although the design elements of this truck were similar to the B2, in fact it looked more like a B3, it would not be historically correct to indicate that Los Angeles used the B2.


Acknowledgement: Thanks is due to Scott Ruffinen for the above Clark Truck Equipment listing. Thanks is also due to James C Hogan who provided the Washington portion of the above list. We welcome any additional information you may wish to provide. We will incorporate it into future revisions.
